SikaBit PRO P-30-0 Sand

SIKABIT PRO P-30-0 SAND – PLASTOMERIC MODIFIED BITUMINOUS WATERPROOFING MEMBRANE

Description

SikaBit PRO P-30-0 Sand is an advanced APP modified bituminous waterproofing membrane that has been designed for uncompromised waterproofing solutions. It is reinforced with a dimensionally stable non-woven polyester inlay, ensuring its longevity and reliability. The underside of this membrane features a thin polyethylene burn-off film, making application a breeze. It can be applied to various substrates, including wood, metal, and concrete, and can even be installed over existing bitumen roofing membranes. The top surface finish is sand, and it boasts a thickness of approximately 3.0 mm, offering robust protection against moisture infiltration.

Application

This versatile waterproofing membrane serves a wide range of applications, including:

• Damp-Proofing Exterior Basement Walls: Protecting against percolating water and damp soil.
• Flat Roofs: Ideal for use under protective layers or ballast.
• Balconies and Terraces: Provides excellent waterproofing beneath tiles.
• Wet Areas: Reliable protection in areas prone to moisture.
• Various Substrates: Suitable for safeguarding a variety of surfaces in different applications.

Advantages

SikaBit PRO P-30-0 Sand offers a multitude of advantages that make it the preferred choice for waterproofing:

• Good Watertightness: Ensures a tight seal against water infiltration.
• Excellent Elongation and Cold Flexibility: Stays flexible in cold conditions, preventing cracks.
• Strong Mechanical Properties: Boasts impressive tensile, tear, and shear strength.
• Resistance to Impact: Can withstand impacts, ensuring long-lasting performance.
• Ease of Installation: Simple installation using the torching method.
• Choice of Primers: Select from a range of primers to suit different substrates and weather conditions.

Product Information

Here’s a quick overview of the key product details:

• Composition: APP modified bitumen.
• Reinforcing Material: Non-woven polyester fabric.
• Packaging: Roll size, 10.00 m in length, and 1.00 m in width.
• Appearance/Colour: Top surface features a sand finish.
• Backing: Polyethylene film.
• Shelf Life: 12 months from the date of production.
• Storage Conditions: Store in original unopened packaging, in dry conditions, at temperatures between +5 °C and +35 °C. Ensure proper storage practices to maintain product integrity.

Technical Specifications

To help you understand the technical aspects of SikaBit® PRO P-30-0 Sand, here are the specifications in a tabular format:

Property	Value
Resistance to Impact	≥ 600 mm at +23 °C (EN 12691- Method A)
Tensile Strength	Longitudinal: 600 N/50 mm ± 20% Transversal: 400 N/50 mm ± 20% (EN12311-1)
Elongation	Longitudinal: 30% ± 15% Transversal: 30% ± 15% (EN12311-1)
Tear Strength	Longitudinal: 150 N ± 30% Transversal: 150 N ± 30% (EN 12310-1)
Joint Shear Resistance	Longitudinal: Min. 500 N/50 mm Transversal: Min. 350 N/50 mm (EN 12317-1)
Flow Resistance	≥ 120 °C (EN 1110)
Watertightness	60 kPa (EN 1928-Method B)

Construction Instructions

To ensure a successful installation of SikaBit® PRO P-30-0 Sand, it’s essential to follow precise construction instructions. These detailed steps will guide you through the process, from substrate preparation to the final application.

Substrate Quality

• Structural Strength: Ensure that the supporting structure is of sufficient structural strength to accommodate the new waterproofing layers. For roofing applications, the entire roof system should be designed to withstand wind uplift loadings.
• Substrate Condition: The substrate must be uniform, firm, smooth, and free of any sharp protrusions, burrs, or irregularities that could impact the adhesion of the membrane.
• Cleanliness: The substrate should be thoroughly clean, free of grease, bitumen, oil, dust, and any loosely adhering particles that could hinder proper adhesion.
• Dryness: Make sure the substrate is dry. Do not apply the membrane to wet or damp surfaces.

Substrate Preparation

• Use appropriate preparation equipment to achieve the required substrate quality. This may include removing any debris, loose material, or contaminants.
• Address any irregularities or imperfections in the substrate by smoothing and leveling as necessary. Ensure the surface is ready to receive the waterproofing membrane.

Application Method and Tools

• Installation Procedures: Strictly follow the installation procedures as defined in the method statements, application manuals, and working instructions. It’s essential to adapt these procedures to the specific site conditions.
• Priming: Apply the appropriate primer from the SikaBit® P or Sika® Igolflex® P range to the prepared dry surface. The primer should be applied at the correct consumption rate as specified in the product data sheets. Allow the primer to dry fully before proceeding with the next stage of application. Always refer to the individual Product Data Sheets for precise primer details.
• Alignment: Unroll the membrane, align it correctly, and then re-roll it. Proper alignment ensures a smooth and even application.
• Overlap Dimensions: Maintain overlap dimensions as follows:
  • Side Overlap: 80 mm.
  • End Overlap: 150 mm.

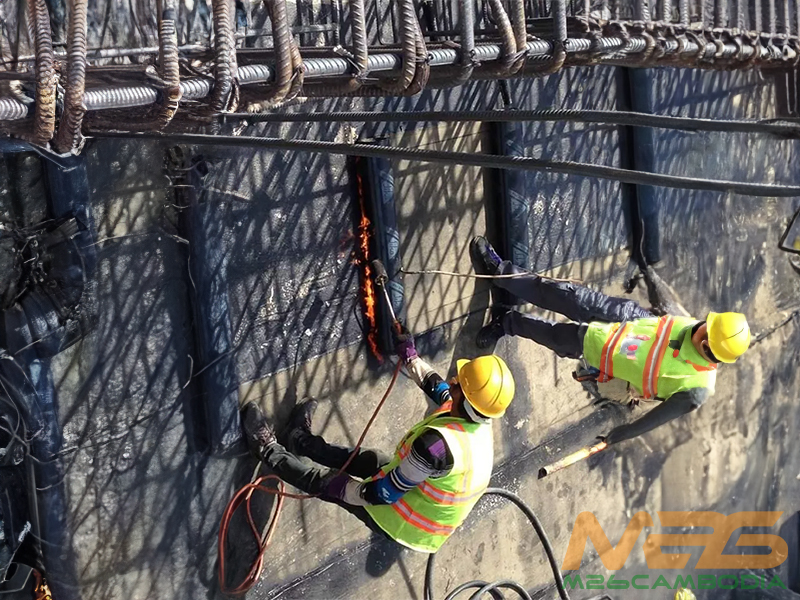

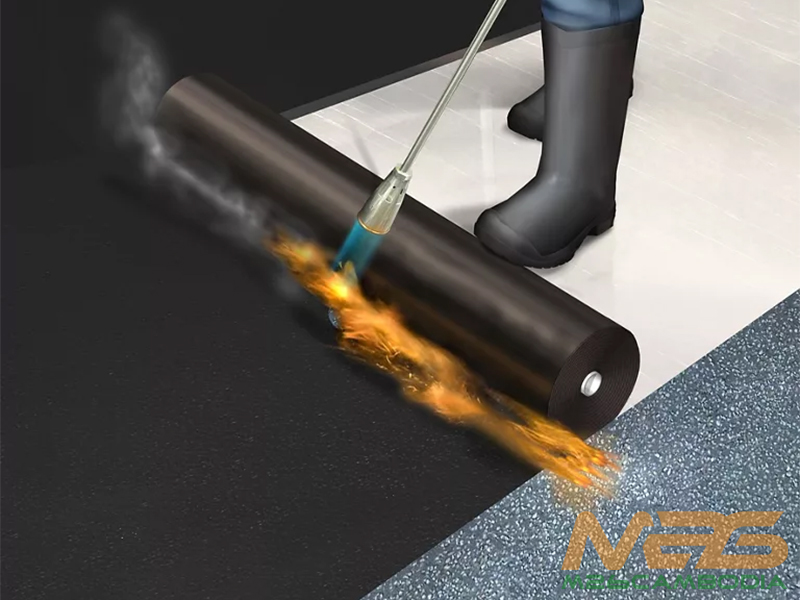

• Torching Method: Use a gas burner to heat both the substrate and the backing film on the underside of the membrane. As the backing film starts to melt, the membrane is ready to adhere.
• Bonding: Roll the membrane forward and press it firmly against the substrate to create a strong bond. Ensure that a bead of melted bitumen is visible along the full length of the overlap sides and ends when laying the membrane. This visual indicator confirms proper bonding.
• Detailing: Pay close attention to detailing for internal and external corners, upstands, vent pipes, drains, support metalwork, or any other areas that require specific treatment. Detailing must adhere to recommended guidelines and best practices for torch-applied membranes.
• Protection: Throughout the construction process, protect the membrane from damage due to other site activities. Avoid excessive traffic or sharp objects coming into contact with the freshly applied membrane.

Maintenance

• To maintain the functionality of the waterproofing membrane during its lifespan, it is advisable to arrange for periodic inspections and maintenance.
• Inspection: Periodically inspect the membrane and detailing for any signs of damage, wear, or degradation. Check the functionality of auxiliary works, such as flashings, drainage outlets, and overflow pipes. Remove any debris, leaves, moss, or other vegetation that may have accumulated on the surface.

Important Considerations

• At low temperatures, take extra care when unrolling the membrane to avoid damaging it.
• Use suitable footwear to avoid puncturing the membrane.
• Do not apply the membrane to wet, damp, or unclean surfaces. Proper surface preparation is crucial for adhesion.
• Avoid over-torching the membrane as excessive heat can damage the polyester reinforcement (which melts at 260 °C), rendering the membrane un-usable.
• If the membrane is insufficiently heated during torching, it can lead to reduced adhesion to the substrate, between layers, or on the overlaps. In such cases, un-bonded areas must be lifted and re-torched.
• If a seasonal symbol is printed on the roll’s label, it is advisable to use the membrane during the indicated season for optimal performance.

By following these construction instructions meticulously, you can ensure the successful installation and long-term effectiveness of the SikaBit® PRO P-30-0 Sand waterproofing membrane in your construction projects. Proper installation is essential to achieve the desired waterproofing results and extend the lifespan of your structure.
