SikaBit W-15

SIKABIT W-15 – WET-APPLIED, MODIFIED BITUMEN WATERPROOFING MEMBRANE

DESCRIPTION

At its core, SikaBit W-15 is a game-changer in the realm of waterproofing. It boasts a construction that consists of a cross-laminated PE film and two modified bitumen layers, all elegantly packaged with silver release liners. This double-sided marvel is designed for wet-application, and its uses are as versatile as they come.

APPLICATION

SikaBit W-15 is your steadfast companion for non-exposed waterproofing applications, including foundations, basement slabs and walls, and podium slabs. Whether you’re crafting a residential masterpiece or constructing a commercial fortress, SikaBit® W-15 ensures that the elements stay where they belong – outside.

ADVANTAGES

SikaBit W-15 brings a host of benefits to the table, making it the prime choice for any waterproofing task:

• Safe, easy, and fast installation: Say goodbye to the complexities of specialized equipment. SikaBit W-15 offers hassle-free installation that is swift and secure.
• Direct application on wet substrate: No need to wait for the rain to stop. This waterproofing membrane can be applied directly on wet surfaces, saving you precious time.
• Excellent initial and long-term adhesion: Count on SikaBit W-15 for steadfast bonding. It doesn’t just stick; it stays stuck.
• Full surface bonding: With zero water underflow, this membrane ensures a watertight seal, leaving no room for leaks.
• Crack-bridging ability: Even when the world around you starts to crack, SikaBit W-15 bridges the gap, maintaining the integrity of your structure.
• High tear and puncture resistance: This membrane laughs in the face of adversity. It can withstand tough conditions and unexpected punctures.
• Resistant to chemical corrosion: When it comes to withstanding the test of time and chemical challenges, SikaBit W-15 shines.

PRODUCT INFORMATION

Now, let’s dive into the specifics:

• Packaging: SikaBit W-15 is available in 1.0 m x 20 m rolls, packaged on cardboard coils and wrapped in woven plastic bags. Each roll weighs 50 kg, and there are 25 rolls per pallet.
• Appearance/Color: This sheet membrane boasts laminated PE film reinforcement on the inside and silver release liners on both sides. Its classic black color features white product name and logo printing on the release liner.
• Shelf Life: With a shelf life of 12 months from the date of production, you can rest easy knowing it’s ready when you are.
• Storage Conditions: Store SikaBit W-15 in dry conditions between +5°C to +35°C. Keep rolls in their original packaging, stored vertically, and away from direct sunlight, rain, snow, and ice.
• Effective Thickness: 1.5 mm (± 10 %) (ASTM D3767 A)

CONSTRUCTION INSTRUCTIONS

Preparation and Surface Inspection

• Before you begin the installation, make sure the substrate is clean, smooth, and free from any irregularities. Inspect the surface for any sharp objects, protrusions, or debris, and remove them to create a smooth base for membrane installation.

Safety Precautions

• Ensure you are wearing appropriate personal protective equipment (PPE) while working with SikaBit® W-15. This typically includes gloves, safety glasses, and appropriate work attire.

Tools and Materials

Gather the necessary tools and materials for the installation:

• SikaBit® W-15 Waterproofing Membrane
• SikaBit®-1 Bonding Slurry (2-3 kg/m2)
• Roller for pressing membrane
• Cutting tools (e.g., utility knife)
• Sika® Primer (if required)
• Broom or brush for surface cleaning
• Measuring tape
• Water hose (for saturating concrete)
• Roller or brush for applying bonding slurry
• Release liner for overlaps (provided with SikaBit® W-15)

PRE-Application

For foundations and base slabs.

• Prepare the Substrate: Ensure the cement concrete substrate is smooth and solid. There should be no standing water on the surface.

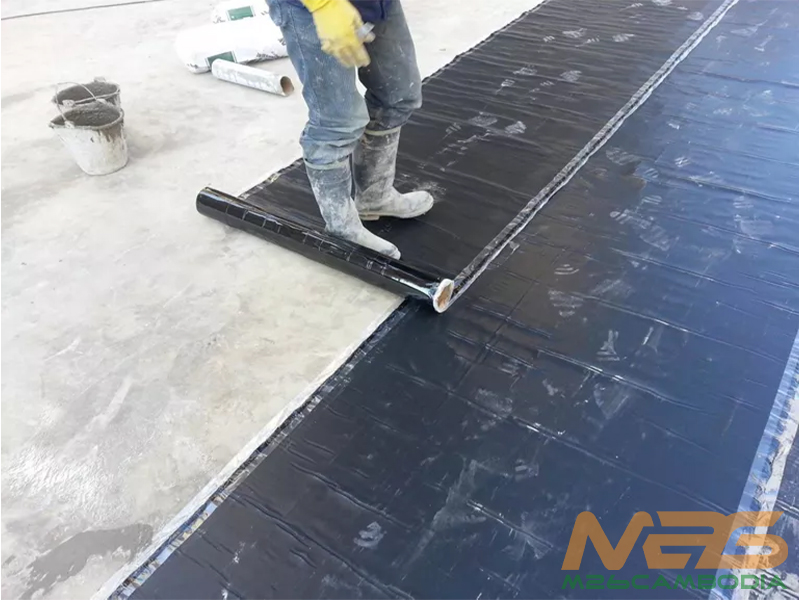

• Unroll SikaBit® W-15: Carefully unroll the membrane onto the prepared substrate. Ensure it is properly aligned.
• Overlap Edges: Overlap the long edges of the membrane by a minimum of 80 mm (approximately 3 inches) and firmly press them together using a roller.
• Overlap Short Edges: Repeat the same overlapping process for the short edges. Ensure the overlaps are staggered for added strength and watertightness.
• Apply Bonding Slurry: After removing the release liner from the membrane, apply a modified cement concrete screed to all horizontal areas. Ensure that it adheres to the membrane effectively.

POST-Application

For walls and podium slabs.

• Prepare the Substrate: Saturate the concrete surface with water using a water hose. Remove any protrusions and ensure that the concrete surface is clean and free from contaminants.
• Apply Bonding Slurry: Using a roller or brush, apply SikaBit®-1 Bonding Slurry (2-3 kg/m2) to the substrate where you plan to install SikaBit® W-15.
• Unroll SikaBit® W-15: Unroll the SikaBit® W-15 membrane over the fresh slurry, ensuring proper alignment.
• Overlap Edges: Overlap the long edges of the membrane by a minimum of 80 mm (approximately 3 inches). Press them together firmly using a roller.
• Overlap Short Edges: Repeat the overlapping process for the short edges, ensuring staggered overlaps for added strength and watertightness.

Additional Considerations

• Temperature: Always apply SikaBit® W-15 at temperatures above +15 °C.
• UV Exposure: Remember that SikaBit® W-15 is not UV-stabilized. Avoid using it in areas where it will be permanently exposed to weathering.
• Protective Layer: The installed membrane must be protected against mechanical damage with a suitable protective layer.
• Bond Strength: It takes a few days for the bond strength between the membrane and the concrete substrate to fully develop. Manual testing of the bond strength, such as a cross-cut peel-off test, is recommended before backfilling, especially in case of low ambient temperatures.

Corners, Penetrations, and Pile Heads

• For detailed instructions on dealing with corners, penetrations, pile heads, and other complex areas, refer to the method statement provided by SikaBit® W System.

By following these detailed construction instructions, you can ensure that SikaBit® W-15 Waterproofing Membrane is installed correctly and efficiently, providing reliable protection against moisture for your construction project.
