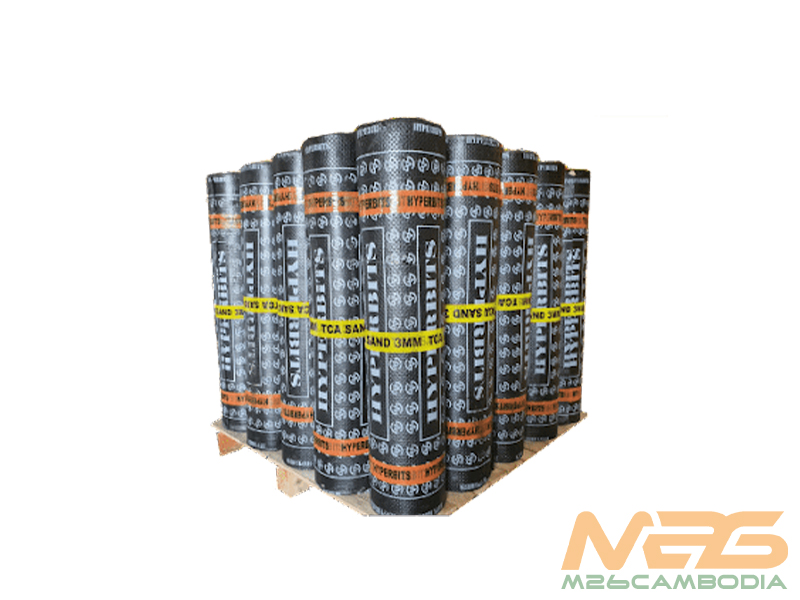

HYPERBITS TCA – Torch On Non-Woven Fiber Compound Reinforced, APP Modified Bituminous Waterproofing Sheet Membrane

Description:

HYPERBITS TCA is a non-woven compound reinforced, APP modified bituminous waterproofing sheet membrane. The product is manufactured on an advanced and modern technological line. It exhibits stable dimensions, high tensile strength, high elongation at break, and excellent mechanical properties.

Surface Finish:

The upper surface: Sand, PE film, Aluminum film, Mineral, and Release film.
The lower surface: PE film.

Storage: Store in a dry, sheltered place away from direct sunlight and frost.

Recommended for: Used for waterproofing concrete roofs, balconies, bathrooms, water areas, basement floors, basement walls, and concrete bridge surfaces.

Package: 10m² / roll

Health and Safety Information:

Ecology: According to local law.
Transportation: Non-hazardous.
Toxic: Non-toxic.
Important notes: Avoiding gas while torching.

Technical Specifications:

Properties	Unit	Specification	Test Method
Thickness	mm	3 (± 5%)	EN 1849-1
Roll Width	m	1 (± 1%)	EN 1848-1
Roll Length	m	10 (± 1%)	EN 1848-1
Tensile Strength (max)
– Longitudinal	N/5cm	700 ± 20%	EN 12311-1
– Transverse	N/5cm	500 ± 20%	EN 12311-1
Elongation at Break
– Longitudinal	%	≥ 2.5	EN 12311-1
– Transverse	%	≥ 2.5	EN 12311-1
Cold Temperature Flexibility	oC	0 ÷ 2	EN 1109
Softening Point (R&B)	oC	≥ 150	ASTM D-36
Resistance to Static Loading	Kg	≥ 5	EN 12730
Resistance to Impact Loading	mm	≥ 900	EN 12691
Flow Resistance at Elevated Temp.	oC	120 ± 10	EN 1110
External Fire Performance	–	F Roof	EN 13501-5
Reaction To Fire	–	F	EN 13501-1
Water Absorption	%	≤ 1	ASTM D-5147
Water Tightness (Method A 60 Kpa)	–	PASS	EN 1928:2000
Thermal Ageing in Air (70 ± 2 oC)	–	4 weeks passed	EN 1296

Note: The information provided is based on technical specifications, and for actual use, it is recommended to follow the application guidelines and best practices provided by the manufacturer.
