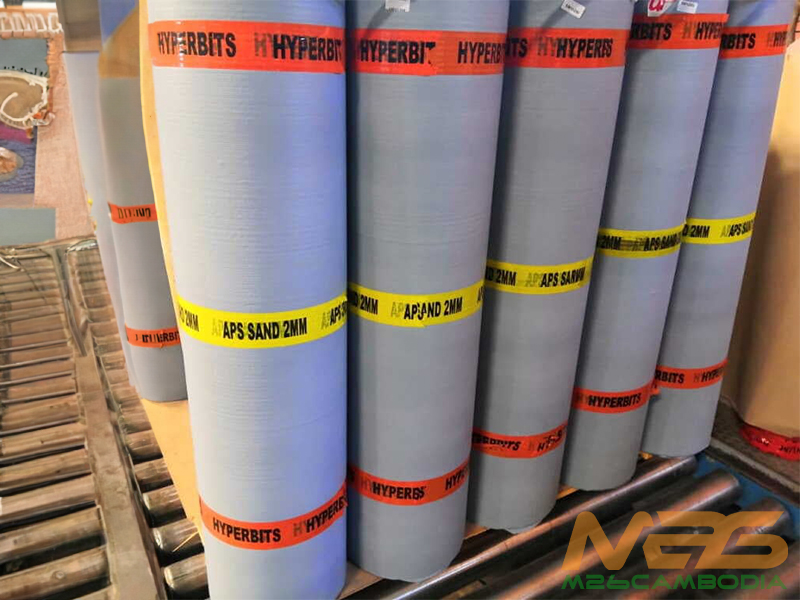

HYPERBITS APS – Self-Adhesive Non-Woven Polyester Reinforced, SBS Modified Bituminous Waterproofing Sheet Membrane

Description:

HYPERBITS APS is a non-woven polyester reinforced, SBS modified bituminous waterproofing sheet membrane. The product is manufactured on an advanced and modern technological line. It features stable dimensions, high tensile strength, high elongation at break, and excellent mechanical properties.

Surface Finish:

The upper surface: Sand, PE film, Aluminum film, Mineral, and Release film.
The lower surface: Release film.

Package:

20m² / roll or 10m² / roll

Storage: Store in a dry, sheltered place away from direct sunlight and frost.

Recommended for: HYPERBITSTM APS is recommended for waterproofing on concrete roofs, metal roofs, fibro-cement roofs, balconies, bathrooms, wet areas, basements, basement walls, especially where using torch is impossible, and for vertical surfaces where torch sheet membranes are difficult to apply. HYPERBITSTM APS applies quickly and safely and saves time.

Health and Safety Information:

Ecology: According to local law.
Transportation: Non-hazardous.
Toxic: Non-toxic.
Important notes: Avoiding gas while torching overlaps.

Technical Specifications:

Properties	Unit	Specification	Test Method
Thickness	mm	1.5 & 2 & 3 (± 5%)	EN 1849-1
Roll Width	m	1 (± 1%)	EN 1848-1
Roll Length	m	20 & 10 (± 1%)	EN 1848-1
Cold Temperature Flexibility	oC	≤ -20	EN 1109
Tensile Strength (max)
– Longitudinal	N/5cm	450 ± 20%	EN 12311-1
– Transverse	N/5cm	300 ± 20%	EN 12311-1
Elongation at Break
– Longitudinal	%	30 ± 15%	EN 12311-1
– Transverse	%	35 ± 15%	EN 12311-1
Shear Resistant of Joint
– Longitudinal	N/5cm	≥ 200	EN 12317-1
– Transverse	N/5cm	≥ 140	EN 12317-1
Peel Resistant of Joint	N/5cm	30 ± 5%	EN 12316-1
Resistance to Static Loading	Kg	≥ 5	EN 12730
Resistance to Impact Loading	mm	≥ 500	EN 12691
Flow Resistance at Elevated Temp.	oC	≥ 90	EN 1110
External Fire Performance	–	F Roof	EN 13501-5
Reaction To Fire	–	F	EN 13501-1
Water Absorption	%	≤ 1	ASTM D-5147
Water Tightness (Method A 60 Kpa)	–	Pass	EN 1928:2000
Thermal Ageing in Air (70 ± 2 oC)	–	4 weeks passed	EN 1296

Note: The information provided is based on technical specifications, and for actual use, it is recommended to follow the application guidelines and best practices provided by the manufacturer.
