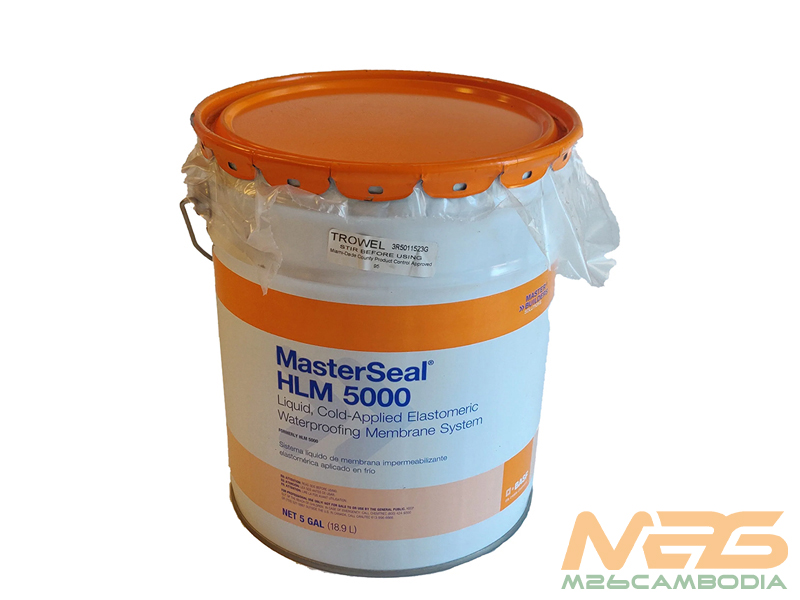

MasterSeal HLM 5000 – Liquid cold-applied elastomeric waterproofing membrane system

DESCRIPTION

MasterSeal HLM 5000 is a one-component, moisture-curing, bitumen-modified polyurethane elastomeric waterproofing membrane used for exterior below-grade or between-slab applications. It is available in grades such as MasterSeal HLM 5000 SL (self-leveling/squeegee) and MasterSeal HLM 5000 R (roller).

PRODUCT HIGHLIGHTS

Available in standard and high-build systems
Waterproofing membrane preventing water penetration
Elastomeric nature accommodates expansion and contraction
Suitable for a wide service-temperature range
Chemical resistance against bacterial attack, select acids, alkalis, and salts
Seamless cold-applied membrane eliminates lapping, seaming, and precutting
Does not require hot-melt equipment

TYPICAL APPLICATIONS

MasterSeal HLM 5000 is suitable for various applications including:

Concrete
Exterior plywood
Below-grade and above-grade applications in masonry, concrete, and incidental metal
Parking garages, concrete tanks, plaza decks, malls
Fountains, pools, balconies, planters
Below-grade slabs, walls, culverts
Sea walls, dams, reservoirs

COMPLIANCES

ASTM C 836
National standard of Canada 37.58 – M86 developed by CGSB

PACKAGING

MasterSeal HLM 5000 SL: 18.95 liter (21.999 kg) pails
MasterSeal HLM 5000 R: 18.95 liter (23.814 kg) pails

TYPICAL PROPERTIES

Minimum recovery: 90%
Swelling in water (3 days at room temperature): Nil
Service temperature range: -40°C to 49°C

COVERAGE / YIELD

Approx. 0.6-0.7m² / liter at 1.4-1.7mm wet thickness (1.1-1.4mm dry thickness). Actual coverage may vary based on application technique, substrate finish, and porosity.

TEST DATA

A series of test data including shore hardness, tensile strength, elongation, moisture vapor permeability, crack bridging test, extensibility after heat aging, adhesion in peel, weight loss, and viscosity.

APPLICATION GUIDELINES

Surface preparation involves ensuring a clean, sound surface and addressing voids or irregularities. Pre-striping joints, cracks, and openings before applying the membrane is essential. It’s recommended to test application and ensure a pinhole-free, continuous membrane for waterproofing integrity.

The application process involves selecting the appropriate grade, spreading the contents as per instructions, and ensuring the finish coat is applied uniformly.
